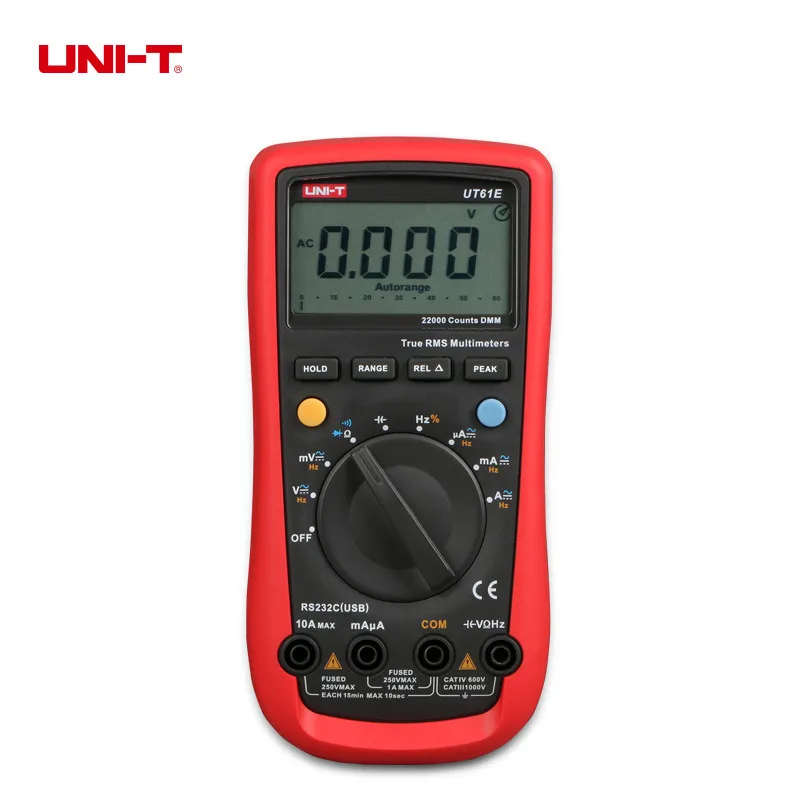

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

90 % of buyers enjoyed this product!
Availability: in stock
Price:  US $59.25 / piece
Sale Price:  US $47.40 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.

  • Large LCD screen
  • High resolution analog pointer display
  • Full range overload protection
  • Data hold, REL, Peak value measurement
  • Low battery indication, backlight, and sleep mode
  • External interface supports RS-232C and USB cable
  • UT61 Series can measure AC/DC voltage and current, resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.
  • UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service,
  • Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

Specifications

Range

Best Accuracy

Model

UT61E

DC Voltage (V)

220mV/2.2V/22V/220V/1000V

±(0.1%+2)

AC Voltage (V)

220mV/2.2V/22V/220V/750V

±(0.8%+10)

DC Current (A)

200μA/2200μA/22mA/220mA/2.2A/10A

± (0.5%+10)

AC Current (A)

200μA/2200μA/22mA/220mA/2.2A/10A

±(0.8%+10)

Resistance (Ω)

220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ

±(0.5%+10)

Capacitance (F)

22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF

±(3.0%+5)

Frequency (Hz)

10Hz-220MHz

±(0.01%+5)

Features

Display Count

22000

Auto Range

True RMS

Bandwidth (Hz)

45Hz ~10kHz

Duty Cycle

0.1% ~ 99.9%

Diode

Continuity Buzzer

Low Battery Indication

≤7.5V

Data Hold

Relative Mode

Peak Value

RS-232

Analogue Bar Graph

46

Input Protection

Input Impedance for DCV

Around 10MΩ

General Characteristic

Power

9V Battery(6F22)

LCD Size

65mm × 43 mm

Product Color

Red and Grey

Product Net Weight

370g

Product Size

180mm × 87mm × 47 mm

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

Specifications

Range

Best Accuracy

Model

UT61E

DC Voltage (V)

60mV/600mV/6V/60V/600V/1000V

±(0.5%+1)

±(0.5%+1)

220mV/2.2V/22V/220V/1000V

±(0.1%+2)

AC Voltage (V)

60mV/600mV/6V/60V/600V/750V

±(1.0%+3)

±(1.0%+3)

220mV/2.2V/22V/220V/750V

±(0.8%+10)

DC Current (A)

600μA/6000μA/60mA/600mA/6A/10A

± (1.0%+3)

± (1.0%+3)

200μA/2200μA/22mA/220mA/2.2A/10A

± (0.5%+10)

AC Current (A)

600μA/6000μA/60mA/600mA/6A/10A

±(1.2%+5)

±(1.2%+5)

200μA/2200μA/22mA/220mA/2.2A/10A

±(0.8%+10)

Resistance (Ω)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+2)

±(1.0%+2)

220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ

±(0.5%+10)

Capacitance (F)

40nF/400nF/4μF/40μF/400μF/4000μF

±(3.0%+5)

±(3.0%+5)

22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF

±(3.0%+5)

Frequency (Hz)

10Hz-10MHz

±(0.1%+4)

±(0.1%+4)

10Hz-220MHz

±(0.01%+5)

Temperature (C)

-40 C ~ 1000C

±(1.2%+3)

Temperature (F)

-40 F~ 1832F

±(1.2%+4)

Features

Display Count

6000

6000

22000

Auto Range

True RMS

Bandwidth (Hz)

45Hz~1kHz

45Hz~3kHz

45Hz~10kHz

Duty Cycle

0.1% ~ 99.9%

Diode

Auto Power Off

Around 15 Minutes

Continuity Buzzer

Low Battery Indication

≤7.5V

Data Hold

Relative Mode

MAX/MIN

Peak Value

RS-232

LCD Backlight

Analogue Bar Graph

61

61

46

Input Protection

Input Impedance for DCV

Around 10MΩ

General Characteristic

Power

9V Battery(6F22) No included

LCD Size

65mm × 43 mm

Product Color

Red and Grey

Product Net Weight

370g

Product Size

180mm × 87mm ×47 mm

UNI-T UT61E Modern Digital Multimeters Auto Range True RMS Voltage Current,Resistance,Capacitance Tester

  • 1 X UNI-T UT61E Multimeter (baterry not included)
  • 1 X Muli-purpose Socket
  • 1 X Test Lead
  • 1 X RS-232 Interface Cable
  • 1 X PC Software CD
