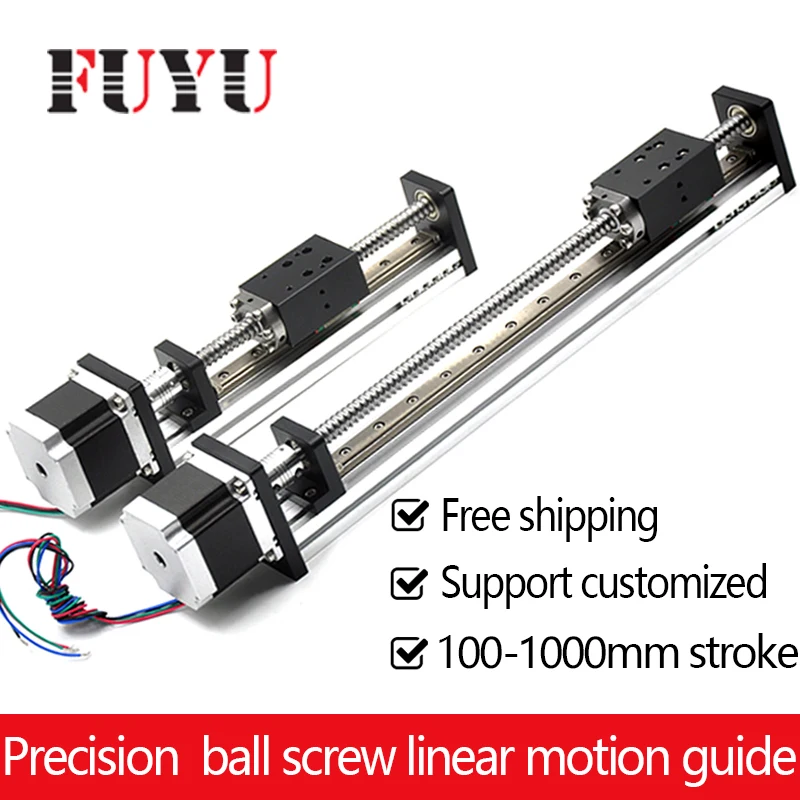

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module
Click to see details
Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module
HTB1ryXDRXXXXXb_XFXXq6xXFXXX2
HTB1d_aySpXXXXaSapXXq6xXFXXXI
HTB1rlNoOXXXXXc0XpXXq6xXFXXXF
HTB15dOPMVXXXXagXXXXq6xXFXXXO
HTB1jctZLpXXXXa7XVXXq6xXFXXXF
HTB178aCSpXXXXXGapXXq6xXFXXXW
HTB1NmurRFXXXXaYapXXq6xXFXXXL
HTB12K3FIpXXXXa0XVXXq6xXFXXXJ
HTB1Jf49LpXXXXctXpXXq6xXFXXXA
HTB1mjR1LpXXXXXxXVXXq6xXFXXXR

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

98 % of buyers enjoyed this product!
Availability: in stock
Price:  US $123.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

FUYU FLS40

Ball screw linear guideway

Years of experience, reliable quality

Low noise, high precision, oem/odm service

Mechanical Dimensions

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Effective Stroke L(mm)

100~1000
Overall Length (mm) L+199
Overall Height (mm)

80

Detailed Images

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Ball screw parameters

Model No.

Dia.(mm) Lead(mm) Accuracy Class

G1605 (100~500mm stoke)

16 05 C7

G1610(600~1000mm stroke)

16 10 C7

Motor parameters

Model No Step angle Motor flange size Motor length Holding torque Current Resistance Inductance Rotor Inertia Lead wire
(°) (mm) L (mm) ( N.m) (A) ( Ω) ( mH) (g.cm⊃2;) (No.)
FM5756SFD04 1.8 57 56 0.93 2.0 3.0±20% 3.19 200 4

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Load Capacity

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Load(kgs) 0~10kgs 10~20kgs
Max Speed Horizontal 140mm/s 80mm/s
Vertical 100mm/s

How to use our linear guide

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Accessories

Please click the above picture to buy the accessory

Company information

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kitThreaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Threaded rod linear guide rail with motor and ball screw for cnc ball screw linear module for 3d printer parts robotic arm kit

Chengdu Fuyu Technology Co., Ltd.

Tel: +86-18982285531
Whatsapp: 86-18982285531
Skype: mika.deng519
QQ: 1626036759

Wechat: papa519987

Address: No.1455, the fourth section of Southwest Airport Avenue (Middle),Shuangliu County, Chengdu, Sichuan Province, China

Our main products:

  1. Linear motion guide
  2. XYZ table
  3. Linear stepper motor (lead screw and ball screw)
  4. Stepper motor with gearbox
  5. Stepper motor driver
  6. High-precision planetary gearbox for stepper motor and servo motor
