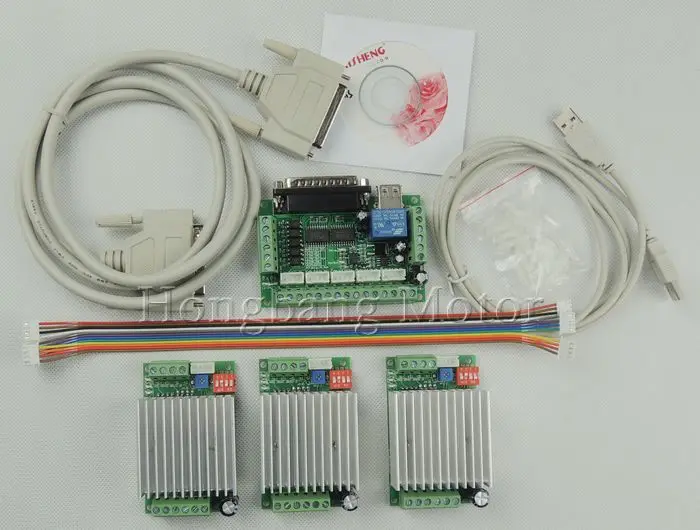

- 3 x single Axis TB6600 stepper motor driver
- 1 x 5 axis breakout board
- 1 x DB25 parallel cable
- 1 x USB cable
- 3 x signal cables
- mach3 software and product manual will send by a CD or Email
Introduction To Functions: The system combines many years experience in the design, prior to this there are several versions, this version is a combination of all the previous advantages, to connect a simple, easy to use as long as accompanied by a stepper motor and switching power supplies and accessories such as to constitute an engravingdrive system, stable performance, cheap, choice of the majority of engraving machine lovers!
This driver uses a new original Toshiba TB6600 chip, stable, locked without any noise. Radiator shell is enough big, the cooling effect is very good!
Send free four white plastic Isolation column, enabling customers to a fixed support, isolation driver board very convenience!
TB6600 Driver description:
1.DC power input type:12V~40V;
2.Output current:0~4.5A, stepless adjustable;
4.Automatic half current function: half or full current can be Selected through the switch;
5.Protect form : Overheated protection, over-current protection;
1.24V+:DC power positive pole
2.GND:DC power cathode
3.A+ A-:Stepping motor one winding
4.B+ B-:Stepping motor other winding
5.CLK-:Stepping pulse input+5V (Rising edge effective , rising edge duration >10S)
6.CW-:Stepping motor direction input, voltage level touched off, high level foreward , low level reverse
7.ENA-: motor free
8.+5V: Signal common terminal
5 Axis breakout board description:
1,fully support of MACH3 and other computer software support for parallel port control.
2,USB power supply and peripherals powered phase separation to protect computer security.
3,peripheral wide voltage input,12-24V, and anti-reverse function.
4,all of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
5,all the way to the relay output port, control spindle switch. Output port P17 mouth.
6,all the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
7,open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
8,P1 as PWM outputs can be controlled with optocoupler input spindle governor.
9,can be accessed by a common cathode or common anode input level to 5V drive.
