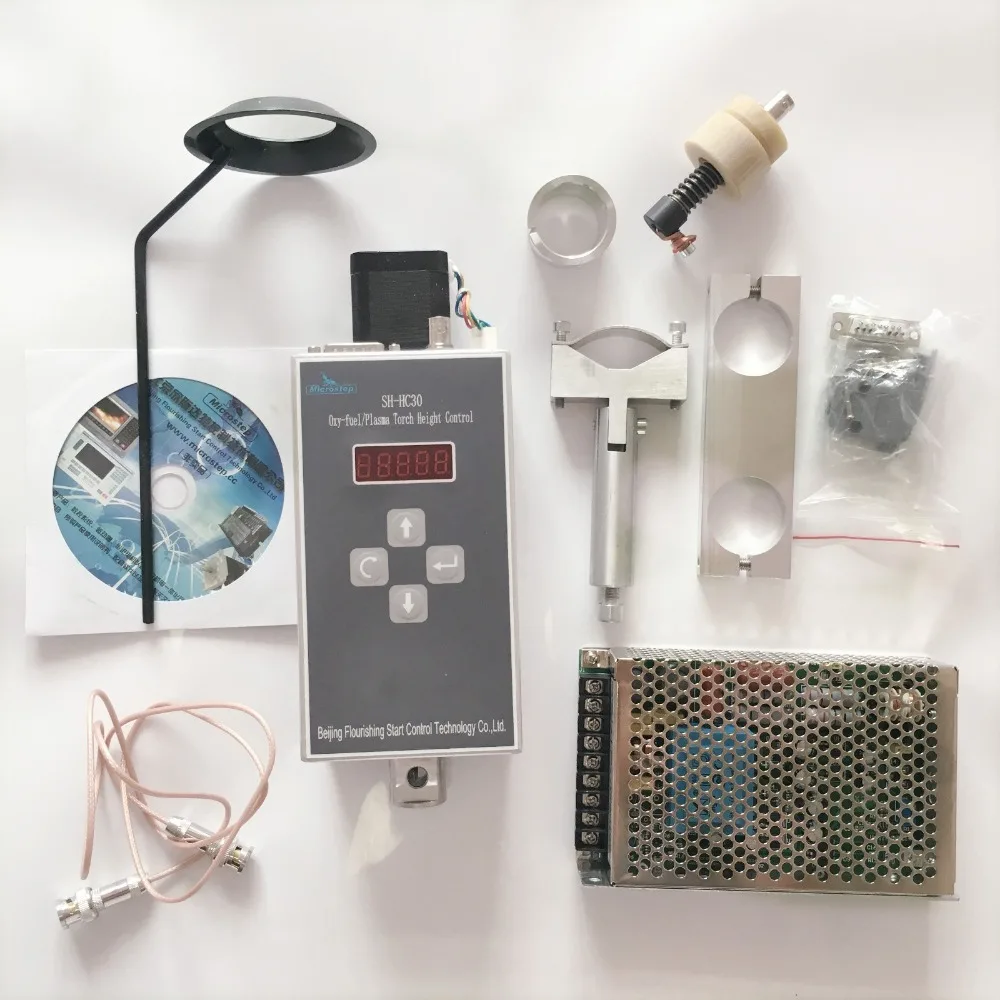

Automatic Arc and cap voltage plasma torch height controller for CNC Plasma cutter cutting machine THC SH-HC30 Microstep

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $360.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Good News!

The voltage spliting board now is a voltage spliting box, more easy for wiring.

We are not only the product dealer, we are professional service provider. We provide full round technical support and after sale service. Your 100% satisfaction is our pursuit.

​We will help you to connect with your cnc plasma controller.

Model SH-HC31 height controller for flame/plasma cutting torch is simple and easy to use, convenient to commission and modest in price. In addition, it insists the sell points of all Microstep products–good product performance at modest price. It is an ideal accessory to match welding or cutting equipment.

Automatic Arc and cap voltage plasma torch height controller for CNC Plasma cutter cutting machine THC SH-HC30 Microstep

Main Technical Parameters

Power Requirements: DC 24V ± 2 V 3 A

Applicable motor: 17/23 HS series of stepper motors

Manual adjustment range: 0-100 mm

Automatic height control range: 3 -30 mm

Adjusting speed of automatic height control: 3000 mm/min (30deg slope) Control precision: ±0.5 mm

Dimensions of box body: (155 x 87 x 71) mm Operating temperature: -10 deg to 50 deg

Main Functions

1. Stepper motor instead of conventional DC motor, makes it faster and smoother in addition to significantly extended service life.

2. Directly displaying the height of cutting nozzle in capacitance height control mode

3. Integration of mechanical lifting device and height controller

4. Circuit uses SMD technology without any adjustable devices; All digital control technology ensures high product reliability.

5. The feature of “one-keystroke height calibration” guarantees that in any circumstances, the user only needs to press one key to calibrate the absolute height measurement and achieve linear height measurement.

6. The shell uses tamper-proof, waterproof and moisture-proof aluminum box sealed design, particularly applicable to the severe environment

7. The interface is simple and easy to control. It is suitable for any flame cutting and plasma cutting CNC system or using alone.

8. Asynchronous communication function enables connection with CNC system and facilitates parameter setting, automatic/manual control, taper angle transition control and data exchange.

Automatic Arc and cap voltage plasma torch height controller for CNC Plasma cutter cutting machine THC SH-HC30 Microstep

Automatic Arc and cap voltage plasma torch height controller for CNC Plasma cutter cutting machine THC SH-HC30 Microstep

Automatic Arc and cap voltage plasma torch height controller for CNC Plasma cutter cutting machine THC SH-HC30 Microstep
