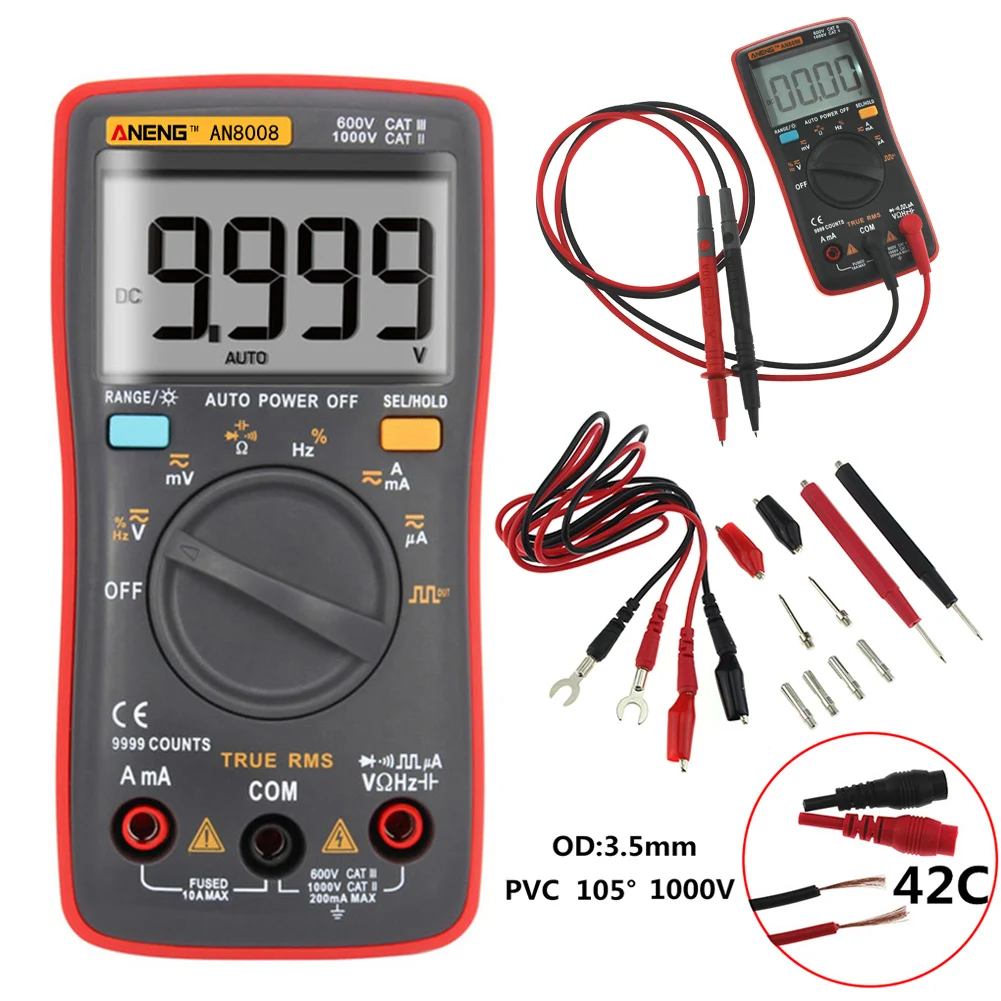

ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual

98 % of buyers enjoyed this product!
Availability: in stock
Price:  US $28.24 / piece
Sale Price:  US $24.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual

Features:
Auto/manual ranges
True RMS
550V protection in Resistance, Capacitance and Frequency ranges
Large LCD display, MAX display 9999 counts
Sample rate: 3 times per second
backlight
Relative measurement
Data hold
Polarity identification
Low voltage indication
Square wave output
9.999A high current and low current measurement
Auto power off
Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Frequency and duty cycle.
* Frequency: 0.01Hz to 9.999MHz
* Capacitance: 0.001nF to 9.999mF
* AC volts: 0.001mV to 750V
* DC volts: 0.001mV to 999.9V
* AC current: 0.01uA to 9.999A
* DC current: 0.01uA to 9.999A
* Resistance: 0.01Ω to 9.999MΩ
* Duty cycle: 1% to 99%
*Square Wave Output:50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/
900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz

Specifications:
(1)Capacitance: 9.999nF(±5.0%+20),99.99nF/999.9uF/9.999uF/99.99uF/999.9uF(±2.0%+5), 9.999mF(±5.0%+5)
(2)DC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V(±0.5%+3)
(3)AC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V(±1.0%+3)
(4)DC current: 99.99uA/999.9uA(±0.8%+3),999.9mA/9.999A(±1.0%+3)
(5)AC current: 99.99uA/999.9uA(±1.0%+3),999.9mA/9.999A(±1.2%+3)
(6)Resistance: 99.99Ω(±1.0%+3),999.9/9.999K/99.99K/999.9K(±0.5%+3),9.999MΩ(±1.5%+3)
(7)Frequency: 99.99/999.9/9.999k/99.99k/999.9k/9.999M (±0.1+2)
(9)Duty cycle: 1% to 99%(±0.1%+2)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40℃, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries x 2) (Not included)
(14) Dimension: approx. 132 x 65 x 30 mm
(15) Net Weight: approx. 113g

ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual

1 x AN8008 True-RMS Digital Multimeter

1 x Storage Bag

2 x Test Leads

1 x Multifunctional test line

1 x Manual

ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual

1 x AN8008 True-RMS Digital Multimeter

1 x Storage Bag

2 x Test Leads

1 x Multifunctional test line

1 x Manual

ANENG AN8008 True-RMS Digital Multimeter 9999 Counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual
