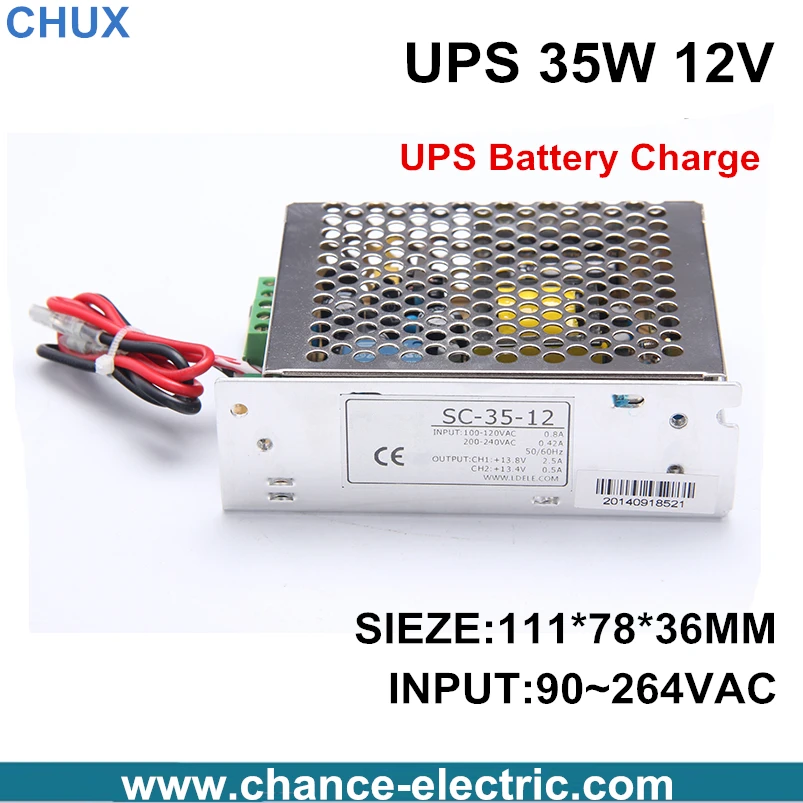

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $10.25 / piece
Sale Price:  US $9.43 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

WELCOME TO OUR SHOP!

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

Features:·universal AC input

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·Indicator for power on/charge/normal(LED)

·100% full load burn-in test

·Battery protection at low voltage

·2 Year warranty

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

UPS charging power supply Features: Long-term floating on the battery charge, high efficiency, battery fullness can reach more than 90% Full self-stop, to prevent the battery overcharge, effectively extend the battery life, Mains / battery automatic switching, no switching time, no human duty. The voltage after the power failure is the battery voltage direct output. Automatically switch to battery power after power failure. Battery power, when the voltage dropped to 10V, automatically turn off the output to prevent over-discharge, can effectively protect the battery. Which charge the battery has nothing to do with the size of the battery capacity of the slow charge, the battery capacity of small fast charge; Which power to the battery charge, no requirements for the type of battery, lead, lithium and other batteries are OK!…

PRODUCTS SHOW

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

Model

SC-35-12

SC-35-24

output

DC voltage

CH1:13.8V

CH1:13.4V

CH1:27.6V

CH2:26.5V

Voltage tolerance

±2%

—–

±1%

—–

Rated current

2.0A

0.5A

1.0A

0.3A

Current range

0~2A

—–

0~1A

—–

Rated power

29.9W

31.8W

Ripple&noise

120mvp-p

—–

120mvp-p

—–

DCvoltage ADJ.range

CH1:11.3~14.9V

CH1:21.3~29.8V

input

Voltage range

90~264VAC,127~370VDC

frequency

47~63HZ

AC current

1.6A/115VAC,0.8A/230VAC

efficiency

81%

83%

Inrush current

Cold start current 25A/115VAC,45A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power110%~150% start over load protection

protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed

Battery protection

At low voltage

9.5~11V

20~22V

protection mode:cutoff output

Function

UPS introduction

long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it’s full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,

cold-start ,when there is no AC input ,can use battery start UPS,Meet the user’s emergency needs

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Compliance to UL60950-1

EMC standard

Compliance to EN55022,CLASSB

others

Dimension

111*78*36mm (L*W*H)

Weight/packing

0.28kg/60pcs/19kg/0.034m⊃3;/1.2CUFT

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)

35W 12V universal AC UPS/Charge function monitor switching mode power supply (SC35W-12)
