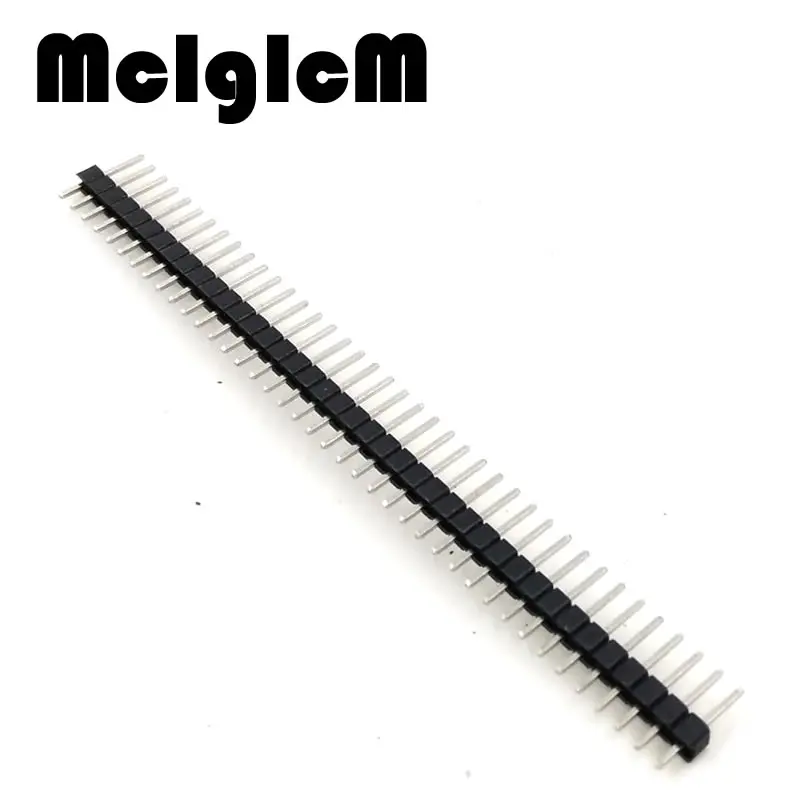

2.54mm Pin Header Single Row Male Pin Connector 2.54mm 40 Pin 1*40pin Breakable Pin Header Connector
Pin Pitch: 2. 54mm
total Size: 102 x 7. 5x 2. 5mm/ 4″x 0. 3″X 0. 1″( l*w*h)
Material: plastic, metal;
color: black, Silver Tone
40 Positions Header, Breakaway Connector 0.100″ (2.54mm) Through Hole Tin
Due to the needs of different specifications of the pin headers are not the same, so the pin header has a variety of
specifications, according to the standard classification of the pin connector in electronic industry:
According to the distance can be divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories
According to the number of rows of a single row, double row, three row;
According to the rules package with patch SMT (horizontal / vertical paste paste), plug-in DIP (line / bending plug);
According to the installation: 180 degrees by division according to S, 90 degrees W, SMT T. The number of rows:
single row, double row, three row, four row, up to four rows.
Pin count: 02~80
Pin: straight, angle, SMT and kinds of the sizes
Dimensions: length, width, thickness, row spacing.
Distant of the pins: 0.8, 1, 1.27, 2, 2.54 (mm).
Material: contact material and surface treatment.
Packing: blister shell, roll bag, bulk.
Material: pin material: brass or phosphor bronze material: UL94V-0 plastic insulator.
if you are in need of any kinds of the pin header or connector, find us, we will give you our best price.
